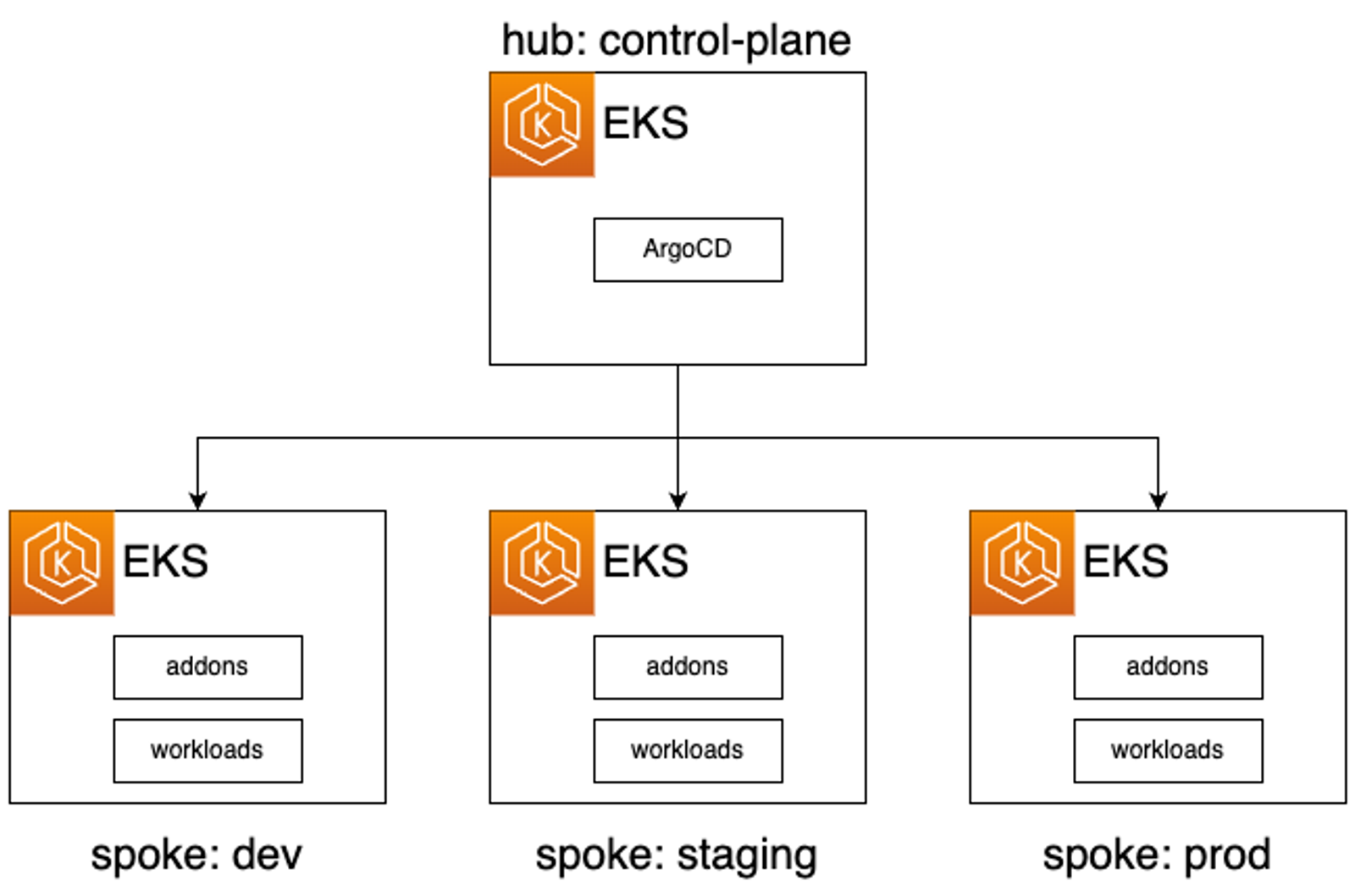

EKS Blueprints for Terraform has been designed to be consumed in the following manners:
참고 Reference: Users can refer to the patterns and snippets provided to help guide them to their desired solution. Users will typically view how the pattern or snippet is configured to achieve the desired end result and then replicate that in their environment.
복붙 Copy & Paste: Users can copy and paste the patterns and snippets into their own environment, using EKS Blueprints as the starting point for their implementation. Users can then adapt the initial pattern to customize it to their specific needs.
EKS Blueprints for Terraform are not intended to be consumed as-is directly from this project. → 그대로 사용은 의도된 것이 아님
In "Terraform speak" - the patterns and snippets provided in this repository are not designed to be consumed as a Terraform module. → 패턴과 스니펫은 Terraform 모듈로 사용하도록 설계되지 않음
Therefore, the patterns provided only contain variables when certain information is required to deploy the pattern (i.e. - a Route53 hosted zone ID, or ACM certificate ARN) and generally use local variables. If you wish to deploy the patterns into a different region or with other changes, it is recommended that you make those modifications locally before applying the pattern. → 일반적으로 Local 블록을 통해 변경하고, 특정 정보가 필요한 경우(R53 호스트영역 ID 등)만 variables 블록을 사용
EKS Blueprints for Terraform will not expose variables and outputs in the same manner that Terraform modules follow in order to avoid confusion around the consumption model. → 복잡성(혼란?)을 줄이기 위해 variables 과 outputs 을 최대한 노출하지 않음
However, we do have a number of Terraform modules that were created to support EKS Blueprints in addition to the community hosted modules. Please see the respective projects for more details on the modules constructed to support EKS Blueprints for Terraform; those projects are listed below. → EKS Blueprints 지원을 위해 제작한 모듈은 아래와 같음
Terraform module which can provision multiple addons; both EKS addons using the aws_eks_addon resource as well as Helm chart based addons using the terraform-aws-eks-blueprint-addon module.
여러 애드온을 프로비저닝할 수 있는 Terraform 모듈입니다 - ‘aws_eks_addon 기반 애드온’ + ‘terraform-aws-eks-blueprint-addon 모듈 사용 헬름 차트 기반 애드온’
Terraform module that creates Kubernetes multi-tenancy resources and configurations, allowing both administrators and application developers to access only the resources which they are responsible for.
관리자와 애플리케이션 개발자 모두 자신이 담당하는 리소스에만 액세스할 수 있도록 Kubernetes 멀티테넌시 리소스 및 구성을 생성하는 Terraform 모듈.
crossplane-on-eks - Crossplane Blueprints is an open source repo to bootstrap Amazon EKS clusters and provision AWS resources using a library of Crossplane Compositions (XRs) with Composite Resource Definitions (XRDs).
2. Data on EKS
data-on-eks - A collection of blueprints intended for data workloads on Amazon EKS.
terraform-aws-eks-data-addons - Terraform module to deploy multiple addons that are specific to data workloads on EKS clusters.
3. Observability Accelerator
terraform-aws-observability-accelerator - A set of opinionated modules to help you set up observability for your AWS environments with AWS-managed observability services such as Amazon Managed Service for Prometheus, Amazon Managed Grafana, AWS Distro for OpenTelemetry (ADOT) and Amazon CloudWatch
4. Karpenter Blueprints
5. karpenter-blueprints - includes a list of common workload scenarios, some of them go in depth with the explanation of why configuring Karpenter and Kubernetes objects in such a way is important.
EKS Blueprints for Terraform does not intend to teach users the recommended practices for Terraform nor does it offer guidance on how users should structure their Terraform projects. → 권장 사례나 테라폼 구성 지침을 제공하지 않습니다.
The patterns provided are intended to show users how they can achieve a defined architecture or configuration in a way that they can quickly and easily get up and running to start interacting with that pattern. Therefore, there are a few caveats users should be aware of when using EKS Blueprints for Terraform: → 최대한 빠르고 쉽게 목표 패턴 실행에 목적
We recognize that most users will already have an existingVPC in a separate Terraform workspace. However, the patterns provided come complete with a VPC to ensure a stable, deployable example that has been tested and validated. → 사용자가 기존 VPC가 있지만, 제공되는 패턴에서 안정적인 배포 보장을 위해 신규 VPC를 배포
However, to simplify the pattern experience, we have defined everything in one workspace and provided instructions to provision the patterns using a targeted apply approach. Users are encouraged to investigate a Terraform project structure that suites their needs; EKS Blueprints for Terraform does not have an opinion in this matter and will defer to Hashicorp's guidance. → 단순화 하여 모든 것을 하나의 작업 공간에서 정의하고 배포함.
Patterns are not intended to be consumed in-place in the same manner that one would consume a module. Therefore, we do not provide variables and outputs to expose various levels of configuration for the examples. Users can modify the pattern locally after cloning to suite their requirements. → Local 블록 수정
Please see the FAQ section on authenticating Kubernetes based providers (kubernetes, helm, kubectl) to Amazon EKS clusters regarding the use of static tokens versus dynamic tokens using the awscli
git clone https://github.com/aws-ia/terraform-aws-eks-blueprints
cd terraform-aws-eks-blueprints/patterns/karpenter
tree
versions.tf
terraform {
required_version = ">= 1.3"
required_providers {
aws = {
source = "hashicorp/aws"
version = ">= 5.34"
}
helm = {
source = "hashicorp/helm"
version = ">= 2.9"
}
kubernetes = {
source = "hashicorp/kubernetes"
version = ">= 2.20"
}
}
# ## Used for end-to-end testing on project; update to suit your needs
# backend "s3" {
# bucket = "terraform-ssp-github-actions-state"
# region = "us-west-2"
# key = "e2e/karpenter/terraform.tfstate"
# }
}
main.tf - local 블록 수정
provider "aws" {
region = local.region
}
# Required for public ECR where Karpenter artifacts are hosted
provider "aws" {
region = "us-east-1"
alias = "virginia"
}
provider "kubernetes" {
host = module.eks.cluster_endpoint
cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
exec {
api_version = "client.authentication.k8s.io/v1beta1"
command = "aws"
# This requires the awscli to be installed locally where Terraform is executed
args = ["eks", "get-token", "--cluster-name", module.eks.cluster_name]
}
}
provider "helm" {
kubernetes {
host = module.eks.cluster_endpoint
cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
exec {
api_version = "client.authentication.k8s.io/v1beta1"
command = "aws"
# This requires the awscli to be installed locally where Terraform is executed
args = ["eks", "get-token", "--cluster-name", module.eks.cluster_name]
}
}
}
data "aws_ecrpublic_authorization_token" "token" {
provider = aws.virginia
}
data "aws_availability_zones" "available" {}
locals {
name = "t101-${basename(path.cwd)}"
region = "ap-northeast-2"
vpc_cidr = "10.10.0.0/16"
azs = slice(data.aws_availability_zones.available.names, 0, 3)
tags = {
Blueprint = local.name
GithubRepo = "github.com/aws-ia/terraform-aws-eks-blueprints"
}
}
################################################################################
# Cluster
################################################################################
module "eks" {
source = "terraform-aws-modules/eks/aws"
version = "~> 20.11"
cluster_name = local.name
cluster_version = "1.30"
cluster_endpoint_public_access = true
vpc_id = module.vpc.vpc_id
subnet_ids = module.vpc.private_subnets
# Fargate profiles use the cluster primary security group so these are not utilized
create_cluster_security_group = false
create_node_security_group = false
enable_cluster_creator_admin_permissions = true
fargate_profiles = {
karpenter = {
selectors = [
{ namespace = "karpenter" }
]
}
kube_system = {
name = "kube-system"
selectors = [
{ namespace = "kube-system" }
]
}
}
tags = merge(local.tags, {
# NOTE - if creating multiple security groups with this module, only tag the
# security group that Karpenter should utilize with the following tag
# (i.e. - at most, only one security group should have this tag in your account)
"karpenter.sh/discovery" = local.name
})
}
################################################################################
# EKS Blueprints Addons
################################################################################
module "eks_blueprints_addons" {
source = "aws-ia/eks-blueprints-addons/aws"
version = "~> 1.16"
cluster_name = module.eks.cluster_name
cluster_endpoint = module.eks.cluster_endpoint
cluster_version = module.eks.cluster_version
oidc_provider_arn = module.eks.oidc_provider_arn
# We want to wait for the Fargate profiles to be deployed first
create_delay_dependencies = [for prof in module.eks.fargate_profiles : prof.fargate_profile_arn]
eks_addons = {
coredns = {
configuration_values = jsonencode({
computeType = "Fargate"
# Ensure that the we fully utilize the minimum amount of resources that are supplied by
# Fargate https://docs.aws.amazon.com/eks/latest/userguide/fargate-pod-configuration.html
# Fargate adds 256 MB to each pod's memory reservation for the required Kubernetes
# components (kubelet, kube-proxy, and containerd). Fargate rounds up to the following
# compute configuration that most closely matches the sum of vCPU and memory requests in
# order to ensure pods always have the resources that they need to run.
resources = {
limits = {
cpu = "0.25"
# We are targeting the smallest Task size of 512Mb, so we subtract 256Mb from the
# request/limit to ensure we can fit within that task
memory = "256M"
}
requests = {
cpu = "0.25"
# We are targeting the smallest Task size of 512Mb, so we subtract 256Mb from the
# request/limit to ensure we can fit within that task
memory = "256M"
}
}
})
}
vpc-cni = {}
kube-proxy = {}
}
enable_karpenter = true
karpenter = {
repository_username = data.aws_ecrpublic_authorization_token.token.user_name
repository_password = data.aws_ecrpublic_authorization_token.token.password
}
karpenter_node = {
# Use static name so that it matches what is defined in `karpenter.yaml` example manifest
iam_role_use_name_prefix = false
}
tags = local.tags
}
resource "aws_eks_access_entry" "karpenter_node_access_entry" {
cluster_name = module.eks.cluster_name
principal_arn = module.eks_blueprints_addons.karpenter.node_iam_role_arn
kubernetes_groups = []
type = "EC2_LINUX"
}
################################################################################
# Supporting Resources
################################################################################
module "vpc" {
source = "terraform-aws-modules/vpc/aws"
version = "~> 5.0"
name = local.name
cidr = local.vpc_cidr
azs = local.azs
private_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 4, k)]
public_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 8, k + 48)]
enable_nat_gateway = true
single_nat_gateway = true
public_subnet_tags = {
"kubernetes.io/role/elb" = 1
}
private_subnet_tags = {
"kubernetes.io/role/internal-elb" = 1
# Tags subnets for Karpenter auto-discovery
"karpenter.sh/discovery" = local.name
}
tags = local.tags
}
outputs.tf
output "configure_kubectl" {
description = "Configure kubectl: make sure you're logged in with the correct AWS profile and run the following command to update your kubeconfig"
value = "aws eks --region ${local.region} update-kubeconfig --name ${module.eks.cluster_name}"
}
# slice extracts some consecutive elements from within a list.
# startindex is inclusive, while endindex is exclusive.
# This function returns an error if either index is outside the bounds of valid indices for the given list.
slice(list, startindex, endindex)
# Examples
> slice(["a", "b", "c", "d"], 1, 3)
[
"b",
"c",
]
INIT
terraform init
tree .terraform
cat .terraform/modules/modules.json | jq
tree .terraform/providers/registry.terraform.io/hashicorp -L 2
VPC 배포 :
# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
# vpc 배포 : 3분 소요
terraform apply -target="module.vpc" -auto-approve
# 배포 확인
terraform state list
data.aws_availability_zones.available
module.vpc.aws_default_network_acl.this[0]
module.vpc.aws_default_route_table.default[0]
module.vpc.aws_default_security_group.this[0]
module.vpc.aws_eip.nat[0]
module.vpc.aws_internet_gateway.this[0]
module.vpc.aws_nat_gateway.this[0]
module.vpc.aws_route.private_nat_gateway[0]
module.vpc.aws_route.public_internet_gateway[0]
module.vpc.aws_route_table.private[0]
module.vpc.aws_route_table.public[0]
module.vpc.aws_route_table_association.private[0]
module.vpc.aws_route_table_association.private[1]
module.vpc.aws_route_table_association.private[2]
module.vpc.aws_route_table_association.public[0]
module.vpc.aws_route_table_association.public[1]
module.vpc.aws_route_table_association.public[2]
module.vpc.aws_subnet.private[0]
module.vpc.aws_subnet.private[1]
module.vpc.aws_subnet.private[2]
module.vpc.aws_subnet.public[0]
module.vpc.aws_subnet.public[1]
module.vpc.aws_subnet.public[2]
module.vpc.aws_vpc.this[0]
terraform show
...
# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
# 상세 정보 확인
echo "data.aws_availability_zones.available" | terraform console
{
"all_availability_zones" = tobool(null)
"exclude_names" = toset(null) /* of string */
"exclude_zone_ids" = toset(null) /* of string */
"filter" = toset(null) /* of object */
"group_names" = toset([
"ap-northeast-2",
])
"id" = "ap-northeast-2"
"names" = tolist([
"ap-northeast-2a",
"ap-northeast-2b",
"ap-northeast-2c",
"ap-northeast-2d",
])
"state" = tostring(null)
"timeouts" = null /* object */
"zone_ids" = tolist([
"apne2-az1",
"apne2-az2",
"apne2-az3",
"apne2-az4",
])
}
terraform state show 'module.vpc.aws_vpc.this[0]'
VPCID=<각자 자신의 VPC ID>
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" | jq
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --output text
# public 서브넷과 private 서브넷 CIDR 확인
## private_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 4, k)]
## public_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 8, k + 48)]
terraform state show 'module.vpc.aws_subnet.public[0]'
terraform state show 'module.vpc.aws_subnet.private[0]'
# EKS 배포 : 13분 소요
terraform apply -target="module.eks" -auto-approve
# 배포 확인
terraform state list
module.eks.data.aws_caller_identity.current
module.eks.data.aws_iam_policy_document.assume_role_policy[0]
module.eks.data.aws_iam_session_context.current
module.eks.data.aws_partition.current
module.eks.data.tls_certificate.this[0]
module.eks.aws_cloudwatch_log_group.this[0]
module.eks.aws_ec2_tag.cluster_primary_security_group["Blueprint"]
module.eks.aws_ec2_tag.cluster_primary_security_group["GithubRepo"]
module.eks.aws_ec2_tag.cluster_primary_security_group["karpenter.sh/discovery"]
module.eks.aws_eks_access_entry.this["cluster_creator"]
module.eks.aws_eks_access_policy_association.this["cluster_creator_admin"]
module.eks.aws_eks_cluster.this[0]
module.eks.aws_iam_openid_connect_provider.oidc_provider[0]
module.eks.aws_iam_policy.cluster_encryption[0]
module.eks.aws_iam_role.this[0]
module.eks.aws_iam_role_policy_attachment.cluster_encryption[0]
module.eks.aws_iam_role_policy_attachment.this["AmazonEKSClusterPolicy"]
module.eks.aws_iam_role_policy_attachment.this["AmazonEKSVPCResourceController"]
module.eks.time_sleep.this[0]
module.eks.module.fargate_profile["karpenter"].data.aws_caller_identity.current
module.eks.module.fargate_profile["karpenter"].data.aws_iam_policy_document.assume_role_policy[0]
module.eks.module.fargate_profile["karpenter"].data.aws_partition.current
module.eks.module.fargate_profile["karpenter"].data.aws_region.current
module.eks.module.fargate_profile["karpenter"].aws_eks_fargate_profile.this[0]
module.eks.module.fargate_profile["karpenter"].aws_iam_role.this[0]
module.eks.module.fargate_profile["karpenter"].aws_iam_role_policy_attachment.this["AmazonEKSFargatePodExecutionRolePolicy"]
module.eks.module.fargate_profile["karpenter"].aws_iam_role_policy_attachment.this["AmazonEKS_CNI_Policy"]
module.eks.module.fargate_profile["kube_system"].data.aws_caller_identity.current
module.eks.module.fargate_profile["kube_system"].data.aws_iam_policy_document.assume_role_policy[0]
module.eks.module.fargate_profile["kube_system"].data.aws_partition.current
module.eks.module.fargate_profile["kube_system"].data.aws_region.current
module.eks.module.fargate_profile["kube_system"].aws_eks_fargate_profile.this[0]
module.eks.module.fargate_profile["kube_system"].aws_iam_role.this[0]
module.eks.module.fargate_profile["kube_system"].aws_iam_role_policy_attachment.this["AmazonEKSFargatePodExecutionRolePolicy"]
module.eks.module.fargate_profile["kube_system"].aws_iam_role_policy_attachment.this["AmazonEKS_CNI_Policy"]
module.eks.module.kms.data.aws_caller_identity.current[0]
module.eks.module.kms.data.aws_iam_policy_document.this[0]
module.eks.module.kms.data.aws_partition.current[0]
module.eks.module.kms.aws_kms_alias.this["cluster"]
module.eks.module.kms.aws_kms_key.this[0]
terraform output
configure_kubectl = "aws eks --region ap-northeast-2 update-kubeconfig --name t101-karpenter"
# EKS 자격증명
## aws eks --region <REGION> update-kubeconfig --name <CLUSTER_NAME> --alias <CLUSTER_NAME>
aws eks --region ap-northeast-2 update-kubeconfig --name t101-karpenter
cat ~/.kube/config
# (참고) context name 변경
kubectl config rename-context "arn:aws:eks:ap-northeast-2:$(aws sts get-caller-identity --query 'Account' --output text):cluster/t101-karpenter" "T101-Lab"
# k8s 노드, 파드 정보 확인
kubectl cluster-info
kubectl get node
kubectl get pod -A
# 상세 정보 확인
terraform show
...
terraform state list
terraform state show 'module.eks.data.aws_caller_identity.current'
terraform state show 'module.eks.data.aws_iam_session_context.current'
terraform state show 'module.eks.aws_eks_cluster.this[0]'
terraform state show 'module.eks.data.tls_certificate.this[0]'
terraform state show 'module.eks.aws_cloudwatch_log_group.this[0]'
terraform state show 'module.eks.aws_eks_access_entry.this["cluster_creator"]'
terraform state show 'module.eks.aws_iam_openid_connect_provider.oidc_provider[0]'
terraform state show 'module.eks.data.aws_partition.current'
terraform state show 'module.eks.aws_iam_policy.cluster_encryption[0]'
terraform state show 'module.eks.aws_iam_role.this[0]'
terraform state show 'module.eks.time_sleep.this[0]'
terraform state show 'module.eks.module.kms.aws_kms_key.this[0]'
terraform state show 'module.eks.module.fargate_profile["kube_system"].aws_eks_fargate_profile.this[0]'
terraform state show 'module.eks.module.fargate_profile["karpenter"].aws_eks_fargate_profile.this[0]'
Cluster Autoscaler 불필요, VM 수준의 격리 가능(VM isolation at Pod Level)
파게이트 프로파일(파드가 사용할 서브넷, 네임스페이스, 레이블 조건)을 생성하여 지정한 파드가 파게이트에서 동작하게 함
EKS 는 스케줄러가 특정 조건을 기준으로 어느 노드에 파드를 동작시킬지 결정, 혹은 특정 설정으로 특정 노드에 파드가 동작하게 가능함
Data Planeaddon 배포 & karpenter helm 배포
# 배포 : 2분 소요
terraform apply -auto-approve
# 확인
terraform state list
data.aws_ecrpublic_authorization_token.token
aws_eks_access_entry.karpenter_node_access_entry
module.eks_blueprints_addons.data.aws_caller_identity.current
module.eks_blueprints_addons.data.aws_eks_addon_version.this["coredns"]
module.eks_blueprints_addons.data.aws_eks_addon_version.this["kube-proxy"]
module.eks_blueprints_addons.data.aws_eks_addon_version.this["vpc-cni"]
module.eks_blueprints_addons.data.aws_iam_policy_document.karpenter[0]
module.eks_blueprints_addons.data.aws_iam_policy_document.karpenter_assume_role[0]
module.eks_blueprints_addons.data.aws_partition.current
module.eks_blueprints_addons.data.aws_region.current
module.eks_blueprints_addons.aws_cloudwatch_event_rule.karpenter["health_event"]
module.eks_blueprints_addons.aws_cloudwatch_event_rule.karpenter["instance_rebalance"]
module.eks_blueprints_addons.aws_cloudwatch_event_rule.karpenter["instance_state_change"]
module.eks_blueprints_addons.aws_cloudwatch_event_rule.karpenter["spot_interupt"]
module.eks_blueprints_addons.aws_cloudwatch_event_target.karpenter["health_event"]
module.eks_blueprints_addons.aws_cloudwatch_event_target.karpenter["instance_rebalance"]
module.eks_blueprints_addons.aws_cloudwatch_event_target.karpenter["instance_state_change"]
module.eks_blueprints_addons.aws_cloudwatch_event_target.karpenter["spot_interupt"]
module.eks_blueprints_addons.aws_eks_addon.this["coredns"]
module.eks_blueprints_addons.aws_eks_addon.this["kube-proxy"]
module.eks_blueprints_addons.aws_eks_addon.this["vpc-cni"]
module.eks_blueprints_addons.aws_iam_instance_profile.karpenter[0]
module.eks_blueprints_addons.aws_iam_role.karpenter[0]
module.eks_blueprints_addons.aws_iam_role_policy_attachment.karpenter["AmazonEC2ContainerRegistryReadOnly"]
module.eks_blueprints_addons.aws_iam_role_policy_attachment.karpenter["AmazonEKSWorkerNodePolicy"]
module.eks_blueprints_addons.aws_iam_role_policy_attachment.karpenter["AmazonEKS_CNI_Policy"]
module.eks_blueprints_addons.time_sleep.this
module.eks_blueprints_addons.module.karpenter.data.aws_caller_identity.current[0]
module.eks_blueprints_addons.module.karpenter.data.aws_iam_policy_document.assume[0]
module.eks_blueprints_addons.module.karpenter.data.aws_iam_policy_document.this[0]
module.eks_blueprints_addons.module.karpenter.data.aws_partition.current[0]
module.eks_blueprints_addons.module.karpenter.aws_iam_policy.this[0]
module.eks_blueprints_addons.module.karpenter.aws_iam_role.this[0]
module.eks_blueprints_addons.module.karpenter.aws_iam_role_policy_attachment.this[0]
module.eks_blueprints_addons.module.karpenter.helm_release.this[0]
module.eks_blueprints_addons.module.karpenter_sqs.data.aws_iam_policy_document.this[0]
module.eks_blueprints_addons.module.karpenter_sqs.aws_sqs_queue.this[0]
module.eks_blueprints_addons.module.karpenter_sqs.aws_sqs_queue_policy.this[0]
terraform show
...
# k8s 클러스터, 노드, 파드 정보 확인
kubectl cluster-info
kubectl get nodes -L node.kubernetes.io/instance-type -L topology.kubernetes.io/zone
kubectl get node -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
fargate-ip-10-10-36-94.ap-northeast-2.compute.internal Ready <none> 10m v1.30.0-eks-404b9c6 10.10.36.94 <none> Amazon Linux 2 5.10.219-208.866.amzn2.x86_64 containerd://1.7.11
fargate-ip-10-10-4-201.ap-northeast-2.compute.internal Ready <none> 10m v1.30.0-eks-404b9c6 10.10.4.201 <none> Amazon Linux 2 5.10.219-208.866.amzn2.x86_64 containerd://1.7.11
fargate-ip-10-10-43-93.ap-northeast-2.compute.internal Ready <none> 10m v1.30.0-eks-404b9c6 10.10.43.93 <none> Amazon Linux 2 5.10.219-208.866.amzn2.x86_64 containerd://1.7.11
fargate-ip-10-10-46-178.ap-northeast-2.compute.internal Ready <none> 10m v1.30.0-eks-404b9c6 10.10.46.178 <none> Amazon Linux 2 5.10.219-208.866.amzn2.x86_64 containerd://1.7.11
kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
karpenter karpenter-6b8687f5db-r9b7q 1/1 Running 0 12m 10.10.36.94 fargate-ip-10-10-36-94.ap-northeast-2.compute.internal <none> <none>
karpenter karpenter-6b8687f5db-v8zwb 1/1 Running 0 12m 10.10.46.178 fargate-ip-10-10-46-178.ap-northeast-2.compute.internal <none> <none>
kube-system coredns-86dcddd859-x9zp8 1/1 Running 0 12m 10.10.4.201 fargate-ip-10-10-4-201.ap-northeast-2.compute.internal <none> <none>
kube-system coredns-86dcddd859-xxk97 1/1 Running 0 12m 10.10.43.93 fargate-ip-10-10-43-93.ap-northeast-2.compute.internal <none> <none>
# helm chart 확인
helm list -n karpenter
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
karpenter karpenter 1 2024-07-20 23:34:26.74931 +0900 KST deployed karpenter-0.35.00.35.0
# SQS queue and EventBridge event rules for Karpenter to utilize for spot termination handling, capacity re-balancing, etc.
## https://jerryljh.tistory.com/132 , https://aws.github.io/aws-eks-best-practices/karpenter/
helm get values -n karpenter karpenter
USER-SUPPLIED VALUES:
serviceAccount:
annotations:
eks.amazonaws.com/role-arn: arn:aws:iam::911283464785:role/karpenter-2024072203075821610000000c
name: karpenter
settings:
aws:
clusterEndpoint: https://163CC620EAB64480AA969E78489258AD.yl4.ap-northeast-2.eks.amazonaws.com
clusterName: t101-karpenter
interruptionQueueName: karpenter-t101-karpenter
clusterEndpoint: https://163CC620EAB64480AA969E78489258AD.yl4.ap-northeast-2.eks.amazonaws.com
clusterName: t101-karpenter
interruptionQueue: karpenter-t101-karpenter
# 시크릿 확인 : kms로 암호 처리됨 - Encrypt Kubernetes secrets with AWS KMS on existing clusters
## Symmetric, Can encrypt and decrypt data , Created in the same AWS Region as the cluster
## Warning - 활성화 이후 비활성화 불가 You can't disable secrets encryption after enabling it. This action is irreversible.
kubectl get secret -n karpenter
kubectl get secret -n karpenter sh.helm.release.v1.karpenter.v1 -o json | jq
# 상세 정보 확인
terraform state list
terraform state show 'data.aws_ecrpublic_authorization_token.token'
terraform state show 'aws_eks_access_entry.karpenter_node_access_entry'
terraform state show 'module.eks_blueprints_addons.data.aws_caller_identity.current'
terraform state show 'module.eks_blueprints_addons.data.aws_eks_addon_version.this["coredns"]'
terraform state show 'module.eks_blueprints_addons.aws_cloudwatch_event_rule.karpenter["health_event"]'
terraform state show 'module.eks_blueprints_addons.aws_cloudwatch_event_target.karpenter["health_event"]'
terraform state show 'module.eks_blueprints_addons.aws_eks_addon.this["coredns"]'
terraform state show 'module.eks_blueprints_addons.aws_iam_role.karpenter[0]'
terraform state show 'module.eks_blueprints_addons.aws_iam_instance_profile.karpenter[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter.data.aws_iam_policy_document.this[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter.data.aws_iam_policy_document.assume[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter.aws_iam_policy.this[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter.helm_release.this[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter_sqs.aws_sqs_queue.this[0]'
terraform state show 'module.eks_blueprints_addons.module.karpenter_sqs.aws_sqs_queue_policy.this[0]'
(옵션) eks-node-viewer 설치 : 노드 할당 가능 용량과 요청 request 리소스 표시, 실제 파드 리소스 사용량 X - Github
kube-ops-view 설치 : 노드의 파드 상태 정보를 웹 페이지에서 실시간으로 출력 - 링크
# helm 배포
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system
# 포트 포워딩
kubectl port-forward deployment/kube-ops-view -n kube-system 8080:8080 &
# 접속 주소 확인 : 각각 1배, 1.5배, 3배 크기
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=1.5"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=3"
# Provision the Karpenter EC2NodeClass and NodePool resources which provide Karpenter the necessary configurations to provision EC2 resources:
kubectl apply -f karpenter.yaml
# 확인
kubectl get ec2nodeclass,nodepool
NAME AGE
ec2nodeclass.karpenter.k8s.aws/default 31s
NAME NODECLASS
nodepool.karpenter.sh/default default
# Once the Karpenter resources are in place, Karpenter will provision the necessary EC2 resources to satisfy any pending pods in the scheduler's queue. You can demonstrate this with the example deployment provided.
# First deploy the example deployment which has the initial number replicas set to 0:
kubectl apply -f example.yaml
kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
inflate 0/0 0 0 42s
# (옵션) 신규 터미널 : karpenter 컨트롤러 로그 확인
kubectl logs -f -n karpenter -l app.kubernetes.io/name=karpenter -c controller
# When you scale the example deployment, you should see Karpenter respond by quickly provisioning EC2 resources to satisfy those pending pod requests:
kubectl scale deployment inflate --replicas=3 && kubectl get pod -w
#
kubectl get nodes -L karpenter.sh/nodepool -L node.kubernetes.io/instance-type -L topology.kubernetes.io/zone -L karpenter.sh/capacity-type
NAME STATUS ROLES AGE VERSION NODEPOOL INSTANCE-TYPE ZONE CAPACITY-TYPE
fargate-ip-10-10-11-164.ap-northeast-2.compute.internal Ready <none> 6m37s v1.30.0-eks-404b9c6 ap-northeast-2a
fargate-ip-10-10-36-94.ap-northeast-2.compute.internal Ready <none> 105m v1.30.0-eks-404b9c6 ap-northeast-2c
fargate-ip-10-10-4-201.ap-northeast-2.compute.internal Ready <none> 105m v1.30.0-eks-404b9c6 ap-northeast-2a
fargate-ip-10-10-43-93.ap-northeast-2.compute.internal Ready <none> 105m v1.30.0-eks-404b9c6 ap-northeast-2c
fargate-ip-10-10-46-178.ap-northeast-2.compute.internal Ready <none> 105m v1.30.0-eks-404b9c6 ap-northeast-2c
ip-10-10-26-220.ap-northeast-2.compute.internal Ready <none> 2m4s v1.30.0-eks-036c24b default c6gn.xlarge ap-northeast-2b spot
#
kubectl get nodeclaims
kubectl get nodeclaims -o yaml | kubectl neat
# deploy 삭제 >> 노드 변화 확인 해보기!
kubectl delete -f example.yaml
# karpenter 정책 삭제
kubectl apply -f karpenter.yaml
terraform init
tree .terraform
cat .terraform/modules/modules.json | jq
tree .terraform/providers/registry.terraform.io/hashicorp -L 2
(옵션) VPC 배포 : 3분 소요 → 한번에 VPC/EKS 배포해도 됨
# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
# vpc 배포 : 3분 소요
terraform apply -target="module.vpc" -auto-approve
# 배포 확인
terraform state list
terraform show
...
# VPC 정보 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
# 상세 정보 확인 : VPC/Subnet tag 정보 확인
echo "data.aws_availability_zones.available" | terraform console
terraform state show 'module.vpc.aws_vpc.this[0]'
VPCID=<각자 자신의 VPC ID>
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" | jq
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --output text
# public 서브넷과 private 서브넷 CIDR 확인
## private_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 3, k + 3)]
## public_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 3, k)]
## private_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 4, k)]
## public_subnets = [for k, v in local.azs : cidrsubnet(local.vpc_cidr, 8, k + 48)]
terraform state show 'module.vpc.aws_subnet.public[0]'
terraform state show 'module.vpc.aws_subnet.private[0]'
EKS 배포 : 11분 소요
# EKS 배포 : 11분 소요
terraform apply -auto-approve
# 배포 확인
terraform state list
module.eks.data.aws_caller_identity.current
module.eks.data.aws_eks_addon_version.this["vpc-cni"]
module.eks.data.aws_iam_policy_document.assume_role_policy[0]
module.eks.data.aws_iam_session_context.current
module.eks.data.aws_partition.current
module.eks.data.tls_certificate.this[0]
module.eks.aws_cloudwatch_log_group.this[0]
module.eks.aws_ec2_tag.cluster_primary_security_group["created-by"]
module.eks.aws_ec2_tag.cluster_primary_security_group["env"]
module.eks.aws_ec2_tag.cluster_primary_security_group["karpenter.sh/discovery"]
module.eks.aws_ec2_tag.cluster_primary_security_group["study"]
module.eks.aws_eks_addon.before_compute["vpc-cni"]
module.eks.aws_eks_cluster.this[0]
module.eks.aws_iam_openid_connect_provider.oidc_provider[0]
module.eks.aws_iam_policy.cluster_encryption[0]
module.eks.aws_iam_role.this[0]
module.eks.aws_iam_role_policy_attachment.cluster_encryption[0]
module.eks.aws_iam_role_policy_attachment.this["AmazonEKSClusterPolicy"]
module.eks.aws_iam_role_policy_attachment.this["AmazonEKSVPCResourceController"]
module.eks.time_sleep.this[0]
module.eks.module.eks_managed_node_group["default"].data.aws_caller_identity.current
module.eks.module.eks_managed_node_group["default"].data.aws_iam_policy_document.assume_role_policy[0]
module.eks.module.eks_managed_node_group["default"].data.aws_partition.current
module.eks.module.eks_managed_node_group["default"].aws_eks_node_group.this[0]
module.eks.module.eks_managed_node_group["default"].aws_iam_role.this[0]
module.eks.module.eks_managed_node_group["default"].aws_iam_role_policy_attachment.this["AmazonEC2ContainerRegistryReadOnly"]
module.eks.module.eks_managed_node_group["default"].aws_iam_role_policy_attachment.this["AmazonEKSWorkerNodePolicy"]
module.eks.module.eks_managed_node_group["default"].aws_iam_role_policy_attachment.this["AmazonEKS_CNI_Policy"]
module.eks.module.eks_managed_node_group["default"].aws_launch_template.this[0]
module.eks.module.kms.data.aws_caller_identity.current[0]
module.eks.module.kms.data.aws_iam_policy_document.this[0]
module.eks.module.kms.data.aws_partition.current[0]
module.eks.module.kms.aws_kms_alias.this["cluster"]
module.eks.module.kms.aws_kms_key.this[0]
module.eks.module.eks_managed_node_group["default"].module.user_data.null_resource.validate_cluster_service_cidr
...
# EKS 자격증명
## aws eks --region <REGION> update-kubeconfig --name <CLUSTER_NAME> --alias <CLUSTER_NAME>
aws eks --region ap-northeast-2 update-kubeconfig --name eks-workshop
cat ~/.kube/config
# k8s 클러스터 정보 확인
kubectl cluster-info
# 각자 자신의 IAM User 의 access entry 생성
ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' --output text)
MYIAMUSER=<각자 자신의 IAM User>
MYIAMUSER=admin
echo $ACCOUNT_ID $MYIAMUSER
aws eks create-access-entry --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER}
aws eks list-access-entries --cluster-name eks-workshop
# 각자 자신의 IAM User에 AmazonEKSClusterAdminPolicy 연동
aws eks associate-access-policy --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} \
--policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy --access-scope type=cluster
aws eks list-associated-access-policies --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} | jq
aws eks describe-access-entry --cluster-name eks-workshop --principal-arn arn:aws:iam::${ACCOUNT_ID}:user/${MYIAMUSER} | jq
# (참고) context name 변경
kubectl config rename-context "arn:aws:eks:ap-northeast-2:$(aws sts get-caller-identity --query 'Account' --output text):cluster/eks-workshop" "T101-Lab"
# k8s 클러스터, 노드, 파드 정보 확인
kubectl cluster-info
kubectl get node
kubectl get nodes -L node.kubernetes.io/instance-type -L topology.kubernetes.io/zone
NAME STATUS ROLES AGE VERSION INSTANCE-TYPE ZONE
ip-10-42-124-1.ap-northeast-2.compute.internal Ready <none> 22m v1.30.0-eks-036c24b m5.large ap-northeast-2a
ip-10-42-134-162.ap-northeast-2.compute.internal Ready <none> 22m v1.30.0-eks-036c24b m5.large ap-northeast-2b
ip-10-42-167-206.ap-northeast-2.compute.internal Ready <none> 22m v1.30.0-eks-036c24b m5.large ap-northeast-2c
kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system aws-node-f5vrd 2/2 Running 0 22m
kube-system aws-node-m945d 2/2 Running 0 22m
kube-system aws-node-vbwc4 2/2 Running 0 22m
kube-system coredns-5b9dfbf96-5bdgg 1/1 Running 0 25m
kube-system coredns-5b9dfbf96-vvb4r 1/1 Running 0 25m
kube-system kube-proxy-84rlt 1/1 Running 0 22m
kube-system kube-proxy-cbtql 1/1 Running 0 22m
kube-system kube-proxy-q8xbn 1/1 Running 0 22m
# 상세 정보 확인
terraform show
terraform state list
terraform state show 'module.eks.aws_ec2_tag.cluster_primary_security_group["study"]'
terraform state show 'module.eks.aws_eks_addon.before_compute["vpc-cni"]'
terraform state show 'module.eks.aws_eks_cluster.this[0]'
terraform state show 'module.eks.aws_iam_openid_connect_provider.oidc_provider[0]'
terraform state show 'module.eks.aws_iam_policy.cluster_encryption[0]'
terraform state show 'module.eks.time_sleep.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_eks_node_group.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_iam_role.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].aws_launch_template.this[0]'
terraform state show 'module.eks.module.eks_managed_node_group["default"].module.user_data.null_resource.validate_cluster_service_cidr'
terraform state show 'module.eks.module.kms.aws_kms_key.this[0]'
terraform state show 'module.eks.module.kms.aws_kms_alias.this["cluster"]'
kube-ops-view 설치 : 노드의 파드 상태 정보를 웹 페이지에서 실시간으로 출력 -링크
# helm 배포
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system
# 포트 포워딩
kubectl port-forward deployment/kube-ops-view -n kube-system 8080:8080
# 접속 주소 확인 : 각각 1배, 1.5배, 3배 크기
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=1.5"
echo -e "KUBE-OPS-VIEW URL = http://localhost:8080/#scale=3"
삭제 : 9분 소요
# kube-ops-view 삭제
helm uninstall kube-ops-view -n kube-system
# 삭제 : vpc 삭제가 잘 안될 경우 aws 콘솔에서 vpc 수동 삭제 -> vnic 등 남아 있을 경우 해당 vnic 강제 삭제 : 9분 소요
terraform destroy -auto-approve
# VPC 삭제 확인
aws ec2 describe-vpcs --filter 'Name=isDefault,Values=false' --output yaml
# kubeconfig 삭제
rm -rf ~/.kube/config
